USAI Connect® LV

USAI Connect LV+ Centralized Power System
Less Cost. Less Space. More Sense.
The next evolution in LED lighting has arrived. The USAI Connect® LV+ is a breakthrough Low Voltage, Multi-Zone Centralized Power System engineered to deliver maximum performance from USAI’s standard and compact, high-output, high-performance fixtures with minimal space and extraordinary efficiency – dramatically reducing costs.
See Connected Products
Less Expensive. Every Way You Count It.
15–33%
Typical Project Savings*
12–38%
Reduction in Fixture Costs
11–31%
Reduction in Labor Costs
17–35%
Reduction in Material Costs
USAI Connect LV+ Makes Sense Everywhere

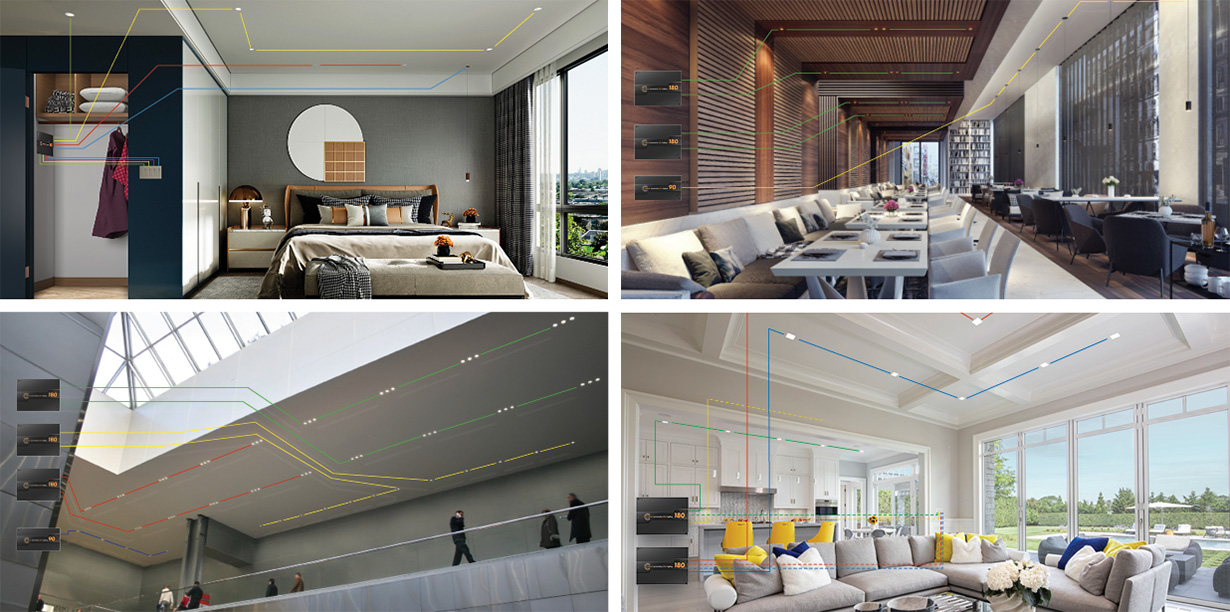

USAI Connect LV+ applications: hotel, restaurant, atrium and residential
Want to learn more about the USAI Connect LV+ Power System? Watch the video
New
USAI Connect LV+ System
One patented centralized power unit powers a group of fixtures: one line-voltage connection in, all Class 2 low voltage out. It's available in three wattages, with up to four dimming zones per unit, for flicker-free dimming with seamless integration across mixed wattages and fixture families.
•Install anywhere, surface, recessed and plenum rated
•Up to 200 ft distance
•Flicker-free dimming to 0.5%
•Polarity agnostic simple fixture wiring
•Optional backup spare power supply
•Soft turn-on performance that meets California Title 24 requirements
•Controls agnostic, works with any wall control or control system

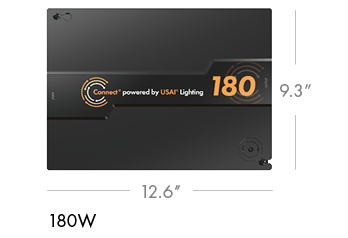

Connect LV+ 180W power unit

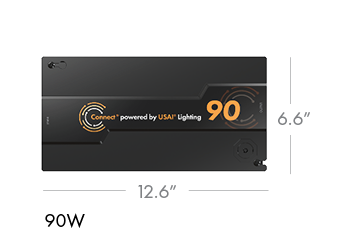

Connect LV+ 90W power unit

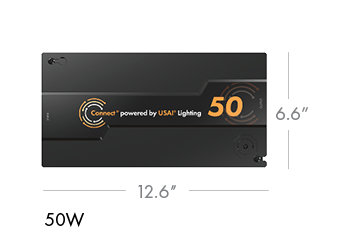

Connect LV+ 50W power unit
Connected Example
4 Zones • 21 Fixtures • 177W • One Power Supply
Line voltage in → one 180W
Class 2 low voltage out, up to 200 ft.
Maximum 90W per string; up to 28 fixtures per string.
Actual Savings
for this Project *
23%
Fixture Cost Savings
19%
Installation Savings
25%
Material Savings
26%

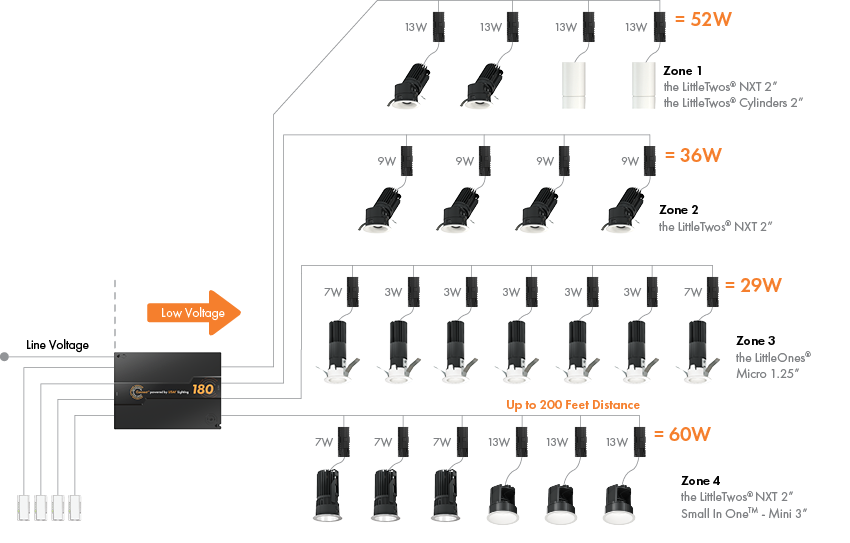

Connect LV+ wiring: one 180W power unit feeding 4 zones
Mix and Match
Up to 28 fixtures on one string
Uniquely allows fixture wattages, color technology and fixture families to be mixed on a string or power unit.
Cost Savings
Lower overall system costs
From smaller and less expensive fixtures, reduced wiring costs and faster installation means substantial savings with as few as 6 fixtures.
Easy to Install
Installing fixtures has never been so easy.
The poke-in connection with the patented polarity agnostic feature dramatically reduces installation time by 80%.
Dimming
Dims to 0.5%
Control-agnostic, smooth and flicker-free dimming with consistent output across long fixture strings.
Polarity Agnostic
Error Proof Installation
Prevents common wiring errors for faster, trouble-free installation.
Poke-In Connections
Fast, Tool-Free Connections
No special wiring or terminations.
Zones
Up to 4 switch zones
Allows for multi room or multi zone configuration out of one power unit for maximum flexibility.
Sustainably Designed
Less Material and Time
For a lower environmental impact.
Maintenance
Centralized Power
Eliminates the concern of servicing an integral driver through a small aperture.
USAI Favorites Connected
Full Feature Fixtures
All the high quality features, options, and performance of standard USAI products—with the added advantages of the Connect LV+ lighting system.
Simplified Specifications
It’s Just Math
Add any combination of fixture wattage 3W, 7W, 9W, 13W to chosen patented power supply: 50W, 90W, 180W with a maximum of 90W per string.
Longer Distance
Up to 200 Feet Distance
Increased distance between power supply and fixtures.
Dim-to-Warm
Dim-to-Warm
3000K dims to 2000K, 90+ CRI
2700K dims to 2000K, 90+ CRI
450–2000 Delivered Lumens
Dim-to-Warm
Dim-to-Warm+
3000K dims to 1800K, 90+ CRI
2700K dims to 1800K, 90+ CRI
450–2000 Delivered Lumens
Classic White
Classic White®
2200K, 2400K, 2700K,
3000K, 3500K, 4000K
250–2500 Delivered Lumens
Just add up the wattages. It’s simple math. Up to 90W per run.
01
Select your fixtures and wattages
Three product families with 1"–3" apertures delivering 250–2500 delivered lumens.
02
Configure your fixture spec sheets
Complete the final specifications for all the fixture options.
03
Configure power units
Complete the final specifications of the power units including the options for mounting and Spare.
Power Unit Spec Sheet →
A Legacy of Small & Powerful
Connected Products
Eleven configurations across four compact families —
1"–3" apertures. Mix any of them on the same string.

Choose Your Connect Fixtures + Choose Your Connect Low Voltage System

FILTER
Tier
Didn't find what you want?Use The USAI Product Filter
Tier 2
Tier 1
New

the LittleOnes® Micro
for Connect LV
  • 1.25" Aperture Round or Square
  • 150 to 800 Delivered Lumens
  • Trimmed/Trimless/Millwork
  • 25° - 50° Beam Options
  • Declare Label Red-List Approved
Tier 2
New

the LittleTwos® NXT
for Connect LV
  • 2" Aperture Round or Square
  • 150 to 950 Delivered Lumens
  • Trimmed/Trimless/Millwork
  • 20° - 75° Beam Options
  • Declare Label Red-List Approved

USAI Connect LV+ Centralized Power Unit

Tier 3
New

Connect LV
  • 50W, 90W, 180W power unit options
  • 3W, 7W, 9W, 13W product type wattages
  • Up to 4 dimming zones per power unit

* Basis of Cost Savings Estimates
Savings percentages are based on studies of multiple product families.
Fixture Savings: Based on traditional fixtures with integral driver vs. Connect Low Voltage fixture without junction box and integral driver.
Labor Savings: Based on time studies and electrical industry expert opinions. Connect LV+ fixtures take 80% less time to install compared to traditional installation. Installation times average 2 minutes for Connect fixtures versus 10 minutes for traditional line-voltage fixtures.
Material Savings Based on wiring costs of 12 AWG line-voltage wire versus 14 AWG low-voltage cable.
Actual savings vary depending on fixture wattage, number of home runs, and the distance between the power supply, panel, and fixtures.
